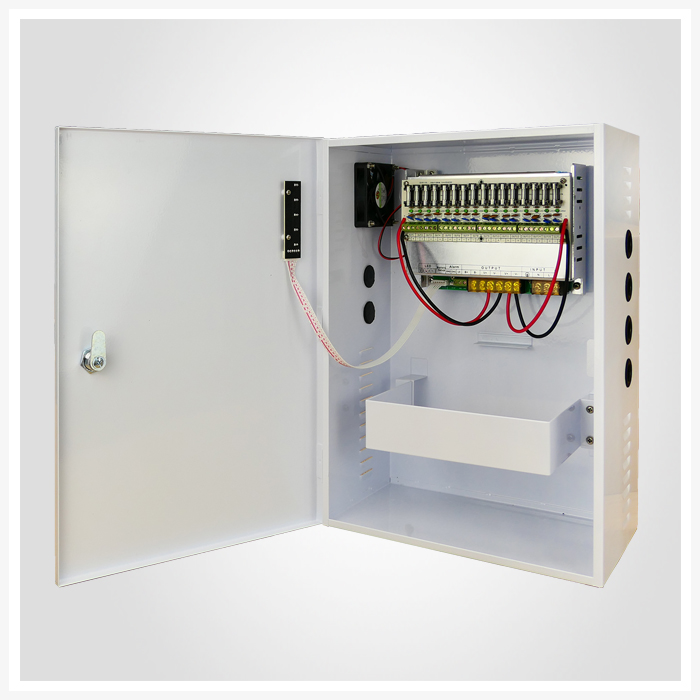

MODEL

SDP240-18CH

OUTPUT

DC VOLTAGE

12V

OUTPUT POWER

240W

CURRENT RANGE

0-1.1Amp(Each channel)  , Total 0-10Amp for 9 channels

RIPPLE & NOISE(max.)

120mVp-p

VOLTAGE ADJ. RANGE

±10%

LINE REGULATION

±1.0%

LOAD REGULATION

±2.0%

VOLTAGE TOLERANCE

±2.0%

SETUP,RISE TIME

800ms, 50ms at full load

HOLD UP TIME

60ms

INPUT

VOLTAGE RANGE

86VAC - 264V AC

AC CURRENT(Typ.)

3.5A/ 226VAC    1.8A/ 240VAC

FREQUENCY RANGE

47-63Hz

EFFICIENCY(Typ.)

85%

INRUSH CURRENT(Typ.)

COLD START 15A/115VAC   30A/230VAC

LEAKAGE CURRENT

<2.0mA/240VAC

PROTECTION

OVER LOAD

115%~135% of rated power; Pulsing hicuup shut down

OVER VOLTAGE

Rated output voltage of 105%~150% start overvoltage protecion

Protection: burst mode,load of abnormal conditions removed the automatic recovery

SHORT CIRCUIT

voltage off and reset input for recovers

ENVIRONMENT

WORKING TEMP.

-0℃ ~ +45℃ (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP.,HUMIDITY

-20℃ ~ +85℃ 10~95% RH

TEMP. COEFFICIENT

±0.05%/℃

COOLING METHOD

BY FREE AIR CONVECTION

SAFTY & EMC

SAFTY STANDARDS

CE EN60950-1 Approved

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC

EMI CONDUCTION

Compliance to EN55022

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS IMMUNITY

Compliance to EN55024

OTHERS

CONNECTION TERMINAL

MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-

POWER SUPPLY DIMENSION

L130*W98*H38MM or L111*W78*H36MM

18CH BOX DIMENSION

L315*W250*H105MM

WEIGHT

3.05Kg/PC, 5PCS/Carton size:45*32*30MM

POWER SUPPLY MATERIAL

Chassis:1.5mm thickness aluminium;Cover:0.7mm thickness iron(silver plating)

18CH BOX MATERIAL

1.5mm tchickness iron (grey plating)
